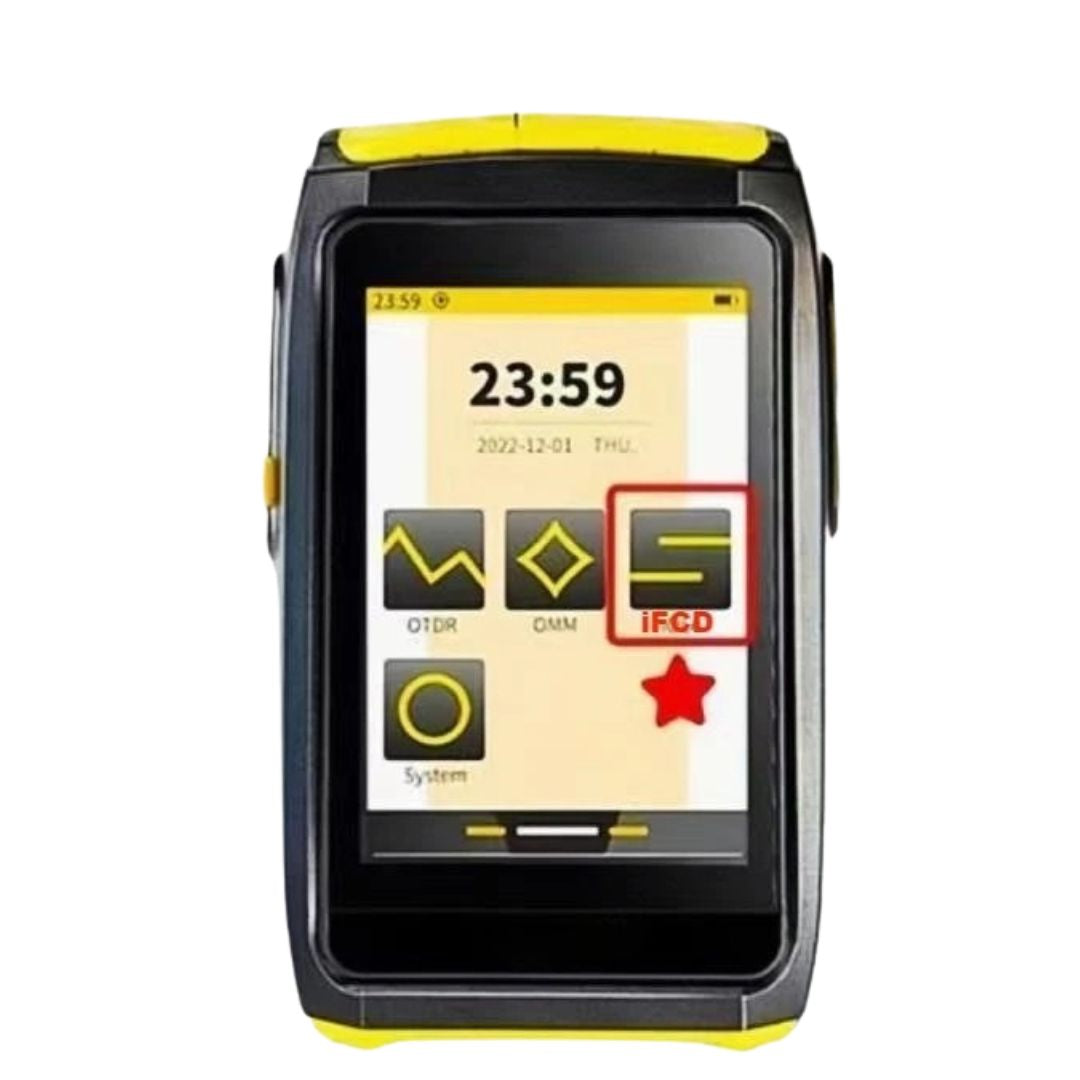

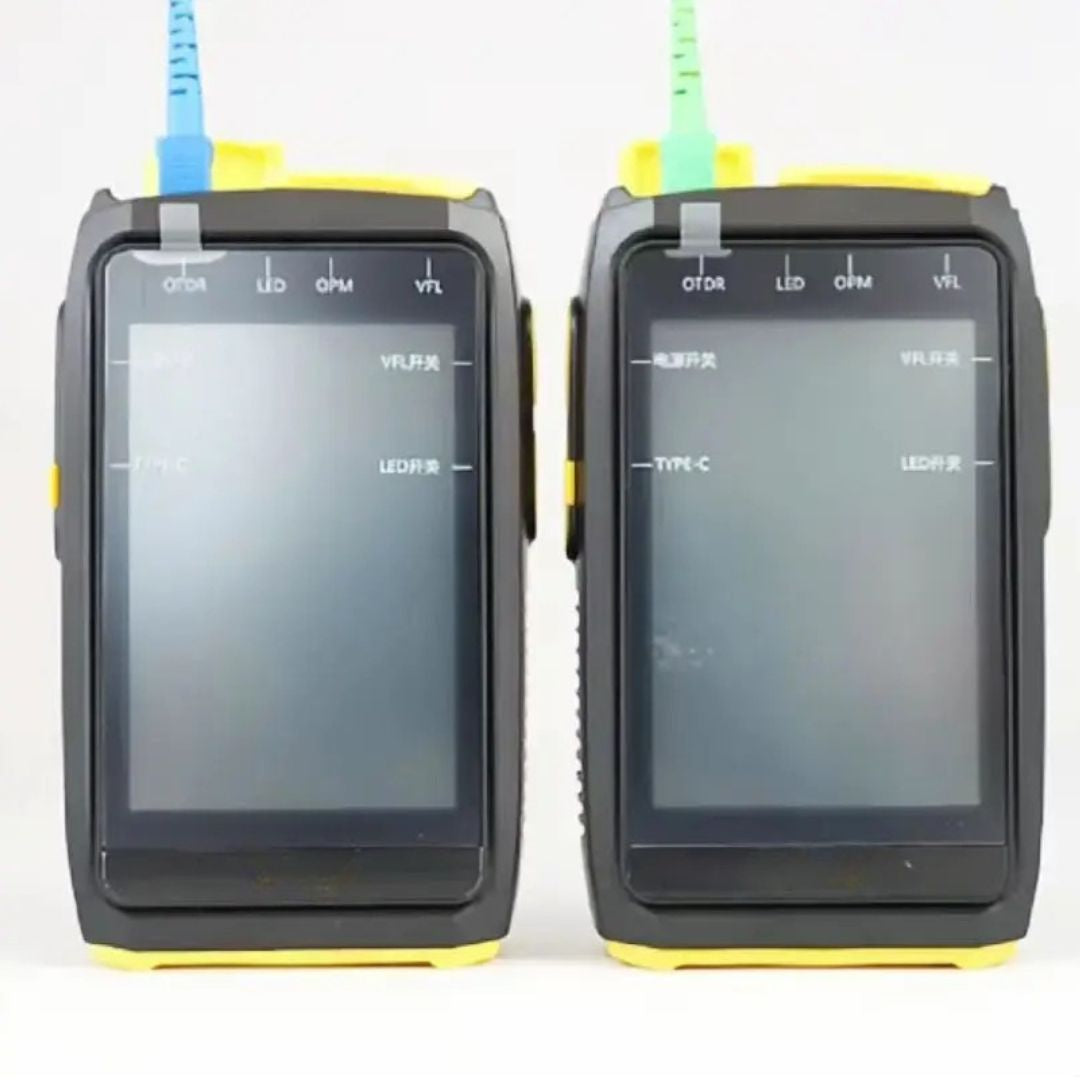

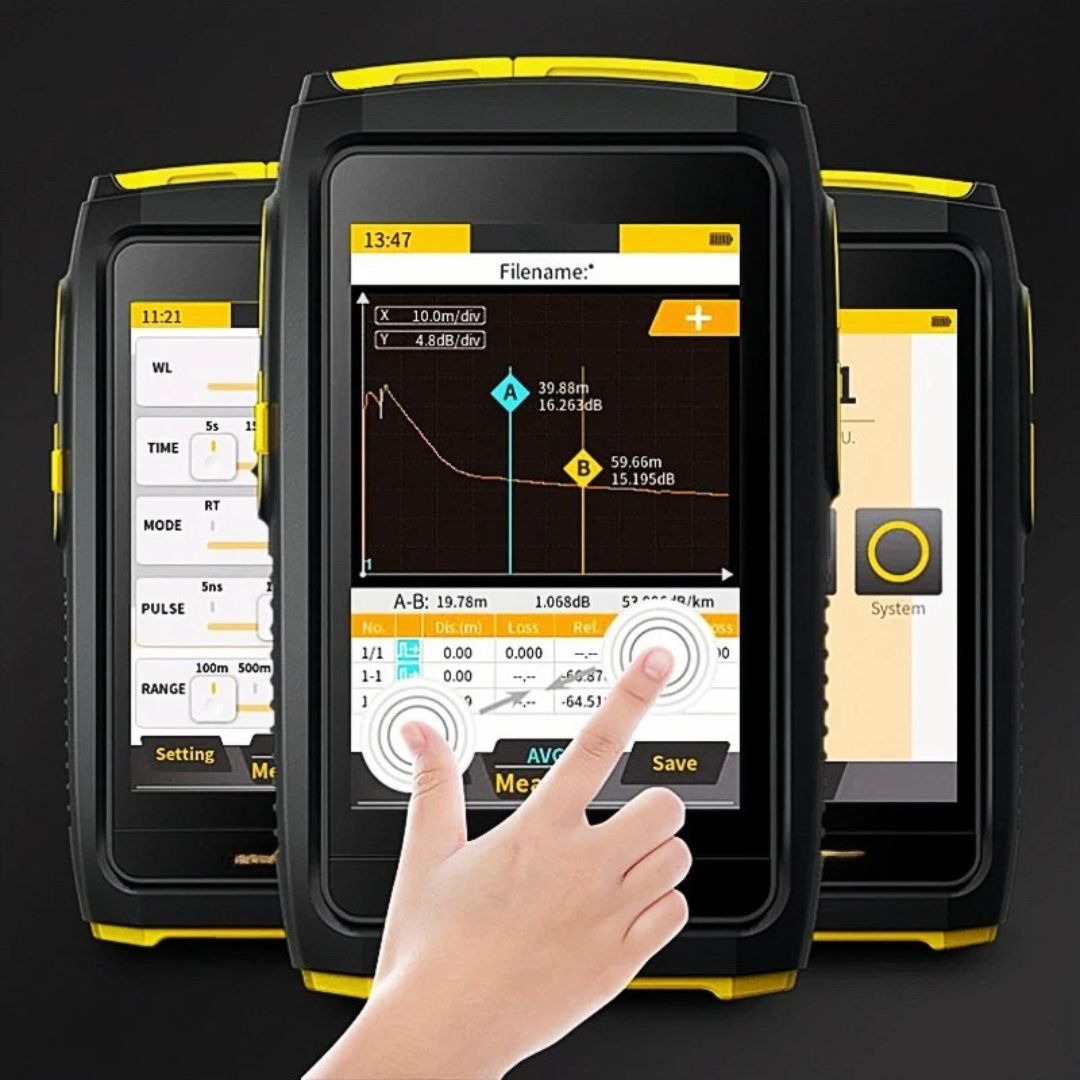

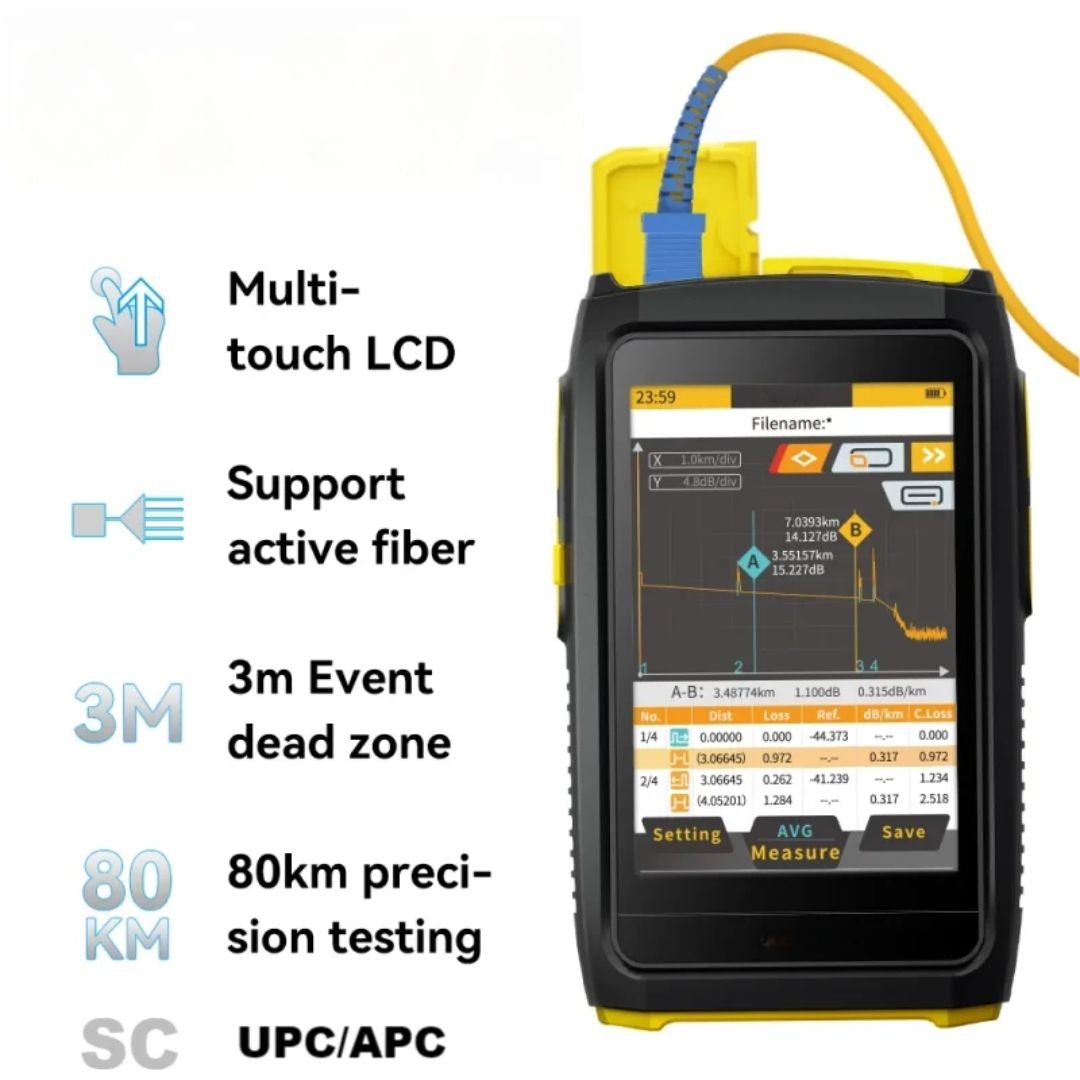

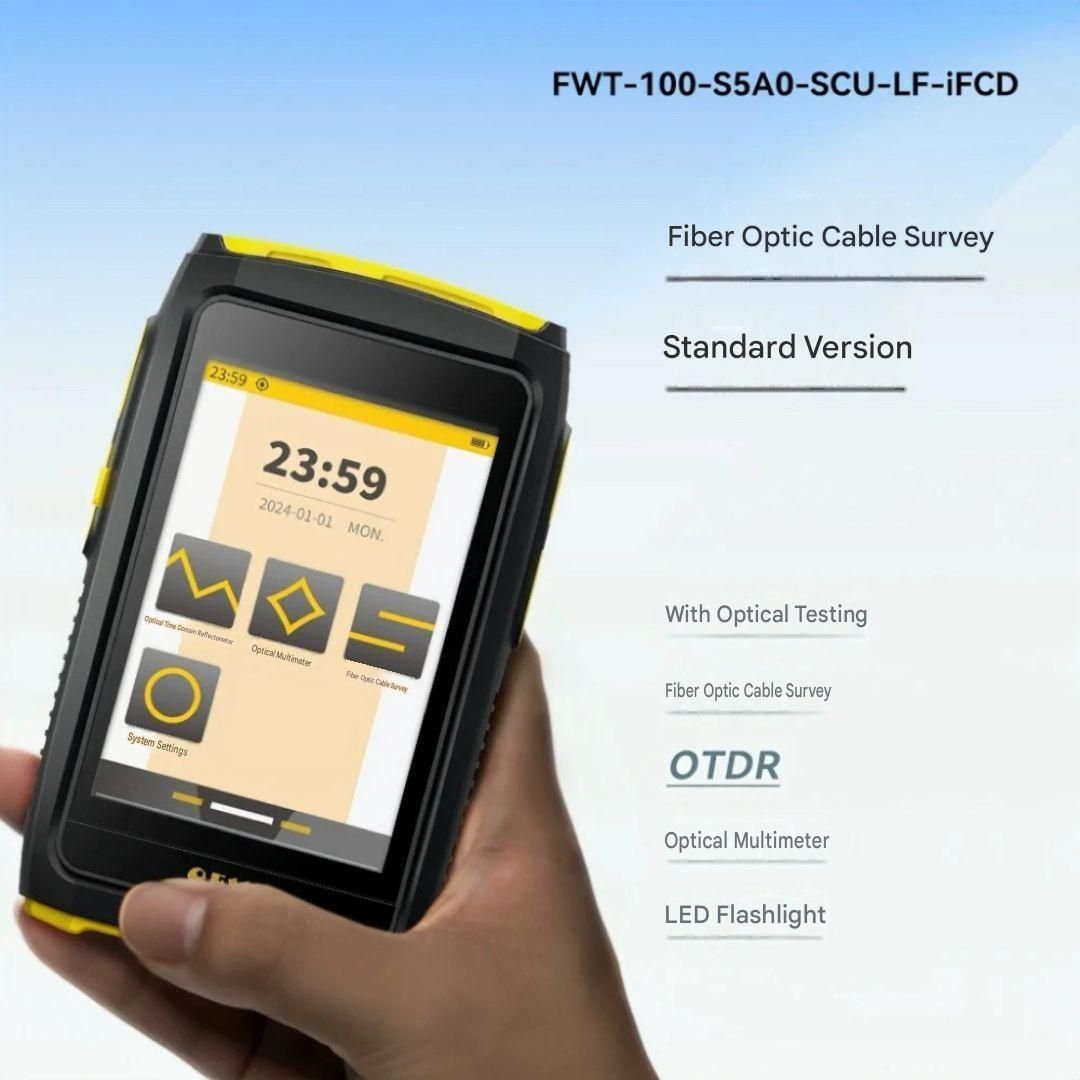

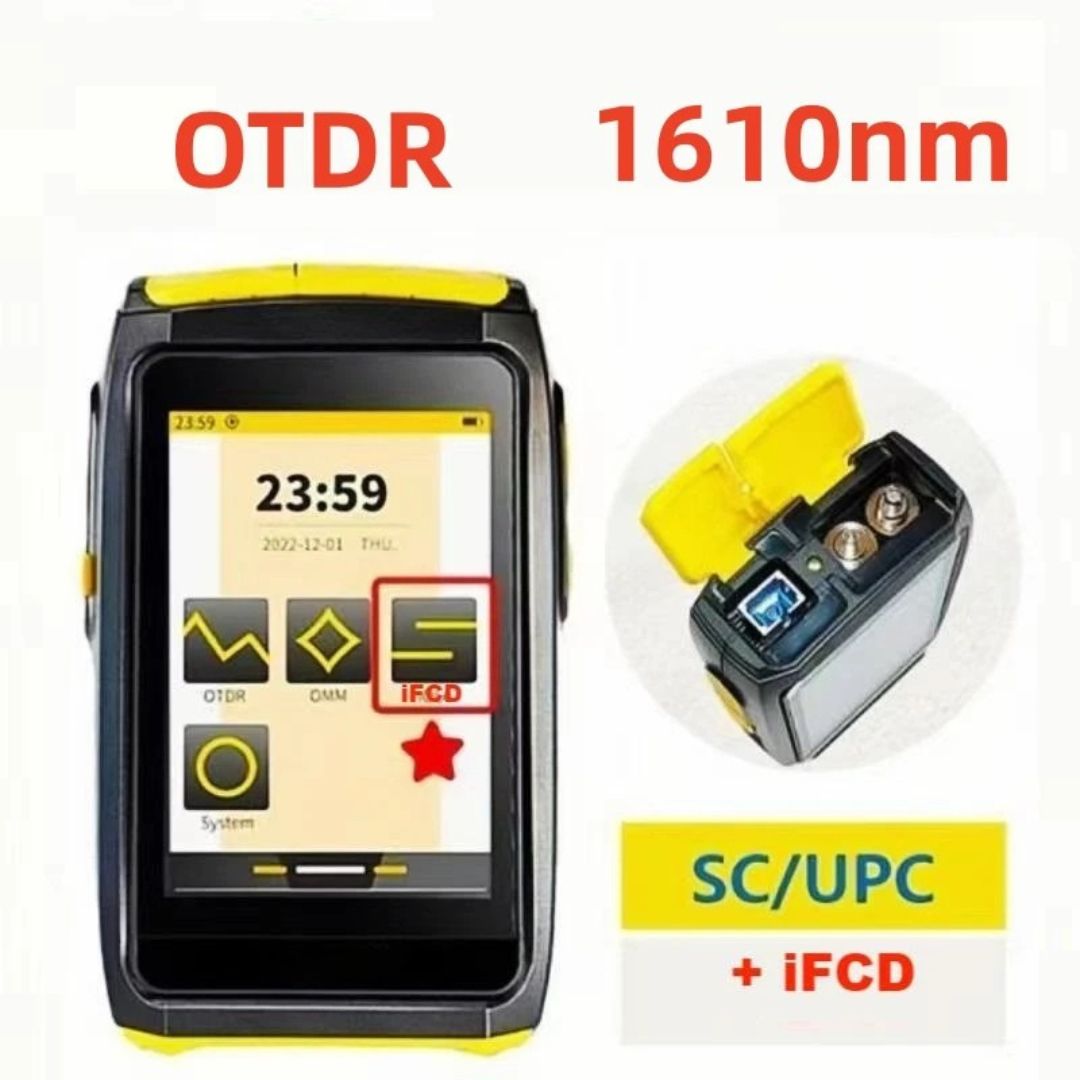

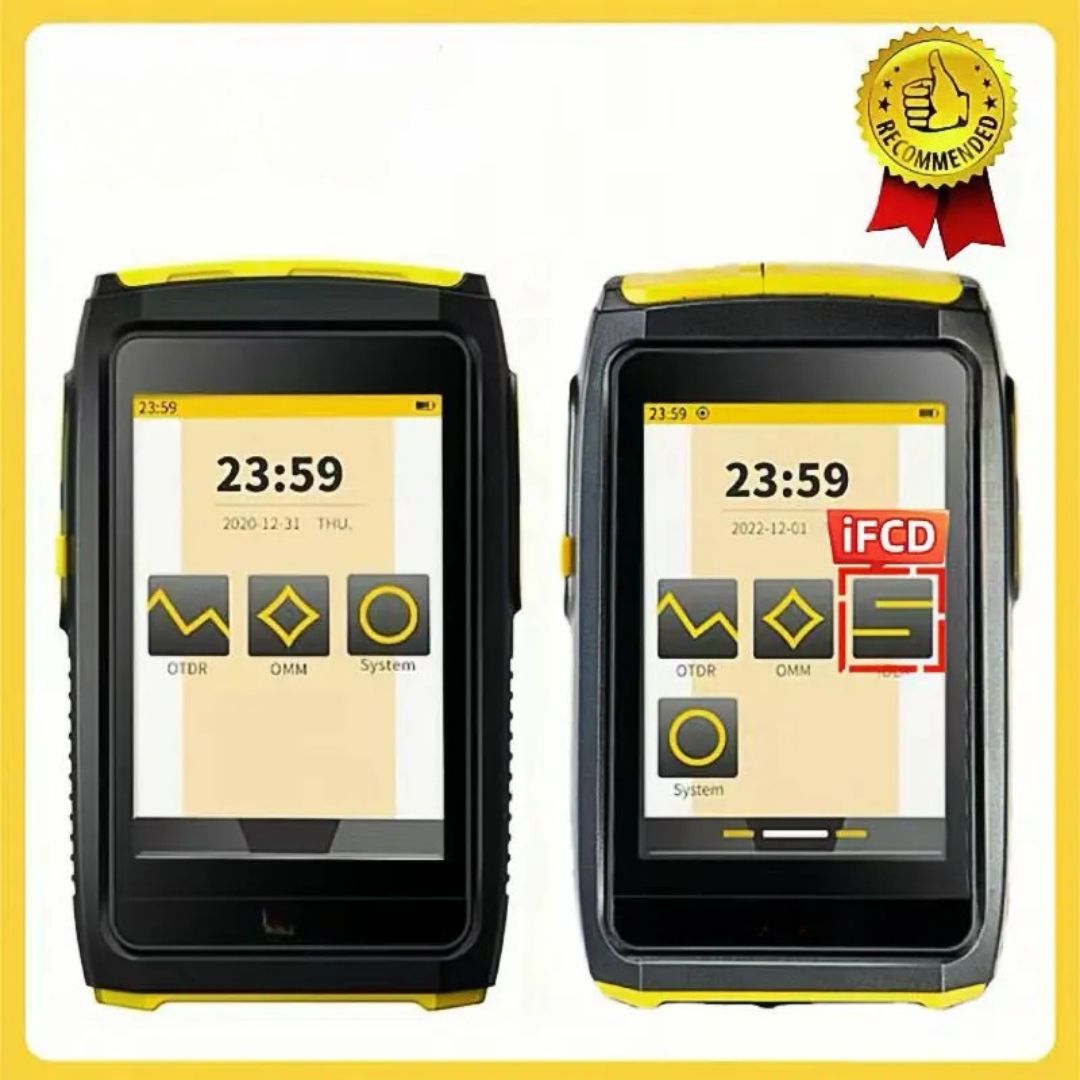

Mini OTDR Active Fiber Live Test 1610nm 20dB 80KM Fiber Reflectometer Touch Screen OPM VFL OLS Tester 11.7x7x3.3cm
Mini OTDR Active Fiber Live Test 1610nm 20dB 80KM Fiber Reflectometer Touch Screen OPM VFL OLS Tester 11.7x7x3.3cm
SPECIFICATIONS
Connector Type: SC/UPC
Fiber Type: Single Mode
High-concerned chemical: None
Item Length: 1m
Model Number: SC UPC
Power Source: Powered
Size: 10*10*5cm
Wireless Function: Yes
Model: FWT-100
Dynamic Range: 20dB
Test Range:100m~80km
Wavelength: 1550（±20nm）
OTDR/OLS Connector: SC UPC/APC
Pulse Width: 5ns~20μs
Measurement Time: 5s~180s
Measurement Mode: Real time, average, automatic
Attenuation Dead Zone: 12m
Event Dead Zone: ＜3m
Sampling Point: 8000
Input Light Detection: Support
Maximum allowable power for light test:
1270nm<10dBm
1310nm<10dBm
1490nm<10dBm
OPM: +26~-50dBm, 850/1300/1310/1490/1550/1625nm, 2.5mm universal connector
VFL: 10mW, 2.5mm universal connector
LCD: 8.9cm high-definition touch screen
Type-C Cable: Type-C x1
Self-calibration Function: Support
LED Light: Support
Working Temperature: 0℃~50℃
Storage Temperature: -20℃~70℃
Relative Humidity: ＜90%
Size(H*W*D): 117mm*70mm*33mm
Weight: 217g
